Fuel Testing
Understanding diesel fuel is essential for maintaining engine performance, equipment longevity, and regulatory compliance. Contaminants like water, particulates, and microbial growth can cause injector damage, clogged filters, and increased emissions, leading to costly repairs and potential regulatory violations. Regular fuel testing ensures reliability, reduces maintenance costs, and enhances safety by preventing fuel-related engine failures.
Fuel Testing Standards
ISO 4406 VS ASTM D975
Although ISO 4406 standard is not directly included within the ASTM D975 standard, it is often considered a complementary test used to assess the cleanliness of diesel fuel. While D975 specifies various fuel properties, a separate ISO 4406 test might be conducted to measure particle contamination levels within a diesel fuel sample as part of a comprehensive quality evaluation.
-
ASTM D975:
The ASTM D975 test is the standard specification for diesel fuel in the United States, established by ASTM International. It defines the requirements for different grades of diesel fuel, including properties such as cetane number, sulfur content, viscosity, lubricity, flash point, and water and sediment levels. The standard ensures diesel fuel meets performance, safety, and emissions requirements for use in various engines, including on-road, off-road, and marine applications. Compliance with ASTM D975 helps maintain fuel quality, engine efficiency, and regulatory adherence.
-
ISO 4406:

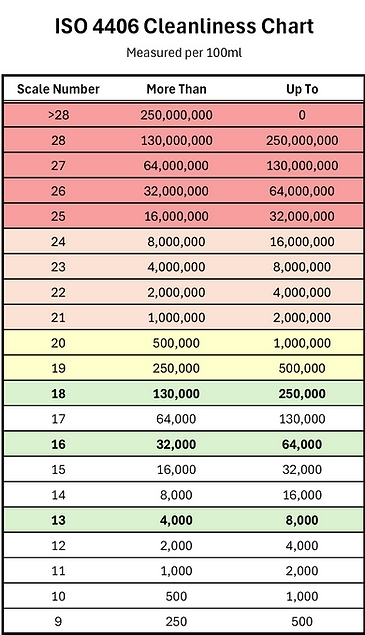

The ISO 4406 test is a contamination rating system used to assess the cleanliness of diesel fuel by measuring the concentration of particulate contaminants. It classifies fuel cleanliness based on particle counts at three size ranges: ≥4µm, ≥6µm, and ≥14µm. The results are expressed as a three-number code (e.g., 18/16/13), where lower numbers indicate cleaner fuel. This test is critical for ensuring diesel fuel meets cleanliness standards to prevent injector wear, pump damage, and overall engine inefficiency. It is commonly used in fuel quality monitoring and maintenance programs for high-performance diesel engines and sensitive fuel systems.
Visual Inspection
Sometimes a simple visual inspection is enough to know your fuel is in bad shape but not always
Diesel fuel that looks clean to the naked eye can still fail the ISO 4406 test. Many harmful contaminants, such as microscopic particulates, are too small to be seen but can still cause significant damage to fuel injectors and pumps. The ISO 4406 test detects particles as small as 4 microns, which are well below the visibility threshold of the human eye (about 40 microns). Even if the fuel appears clear, it may still contain enough fine particulates to exceed acceptable contamination levels, making ISO 4406 testing crucial for ensuring proper fuel cleanliness.
​
All of the samples on the left did not pass spec when tested to the ISO 4406 standard, even though two of them look very clean.
How Often Should Fuel Be Polished?
Annual fuel polishing is critical to maintaining good fuel quality. If your fuel is already badly out of spec, we recommend polishing every 6 months until the fuel gets back into optimal condition. A six-month schedule provides proactive fuel management and will, over time, raise the overall quality of your fuel, minimizing risks before they become costly problems, whereas yearly polishing may allow more contamination to accumulate, increasing maintenance needs and potential system failures.
